Fully automatic flat bed die cutter with leading edge feeding

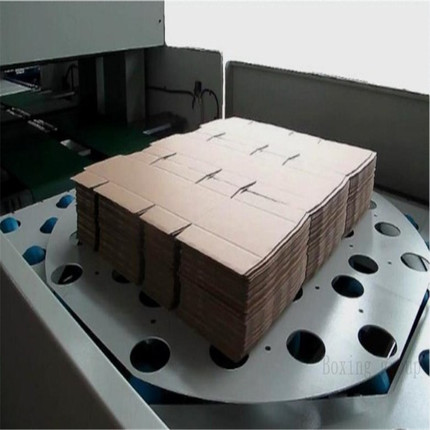

The full automatic flat bed die cutter is a high versatility, precision, and efficiency. The technology original from Japan 100 years old factory ASAHI, This machine is capable of cutting a wide range of cardboard materials with high accuracy to produce die cutting carton boxes, making it ideal for various industries such as packaging, printing, and labeling. The flat bed die cutter design allows for easy loading and unloading of cardboard and finsihed cartons, while its advanced technology ensures consistent and clean cuts every time. Additionally, the flat bed die cutter is known for its speed and productivity, helping businesses save time and reduce production costs.

Main Technical

Are you looking for a reliable and efficient solution for your cutting needs? Look no further than this flat bed die cutter. With its advanced technology and precision cutting capabilities, this machine is a game-changer for industries that require high-quality cuts on a variety of materials. From packaging to printing, the Ashri flat bed die cutter is the perfect tool to help streamline your production process and increase efficiency. Discover the advantages of this versatile machine and take your package business to the next level.

Characteristic:

1. Easy operation, all operation is controlled from exterior of the die cutter machine, exclusively for corrugated board, coated board with the latest non-stop servo-drive and vacuum suction belt feeder (Lap Feeder)

2.     Accurate die-cutting and uniform creasing from micro flute material up to 3ply&5ply corrugated cardboard.

3.     Twice positioning type, first is on the servo vacuum belt, second is reaching front baffle by positioning device.

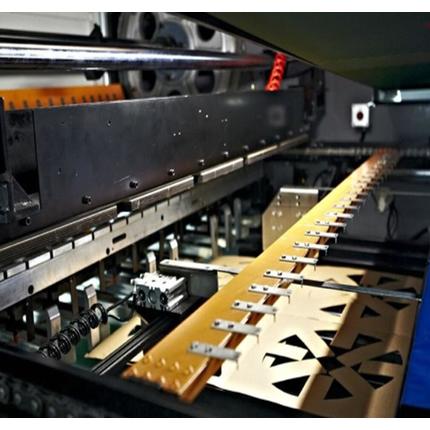

4.     Complete (100%) stripping, first is remove the waste from 3 edges and insides, second is remove the waste from grip edge, by stripping system and grip edge waste removal device.

5.     High productivity, excellent adaptability for small and large format production, can run at max. speed.

6. Reliable safety performance. Dual safety protection device design (air brake and outage shutdown device.)

Discripition:

1.  Front baffle device, the benchmark baffle of production direction, is combined with 8 sets of positioning parts, special design for board position, and the adjusting is by handle.

2.  Side lay, to do the horizontal positioning of cardboard, motorized adjusting according to the cardboard size.

3.  Pusher, pushes the cardboard up when the front baffle finishing the positioning, and gripper bar pin the cardboard.

4.  Die-cutting frame, is installed on the upper plate, inside frame size: 1220 x 1670mm. The back plate of frame is made of alloy steel by hardening and grinding, with protect device-resin cover plate to protect the adjusting of die-cutting pressure.

5.   Die-cutting plate, installed on the driven plate, size: 1680mm×1190mm×6t, made of alloy steel by hardening and grinding.

6.  Steel cushion plate: to pad on the die-cutting plate.

7.  Frame fixing device, after die-cutting frame inserts into the die-cutting section, adopts air pressure type to fix.

8.  Die-cutting pressure adjusting, hand crank with dial indicator display. To use hand crank to micro-adjust the lift of driven plate to adjust the die-cutting pressure.

9.   Die-cutting pressure display device: equipped with dial indicator to display the deformation of frame, the die-cutting tons are showed on the coordinated graph.

Electric Device

1.   Machine control: the machine running is controlled by MITSUBISHI PLC. Photoelectric sensor of each section monitor the paper condition, if appear failure, it will auto warning and stop machine.

2.  MITSUBISHI Main motor: controlled by frequency transformer, guarantee the accurate speed control and stable power supply.

3.  Control platform: easy operation, each section has necessary operation button.

4.  MITSUBISHI Display screen: display the machine condition of each unit.

5.  Voltage: AC380, 3 phase.

Main Motors and Electric Parts
